Architecture

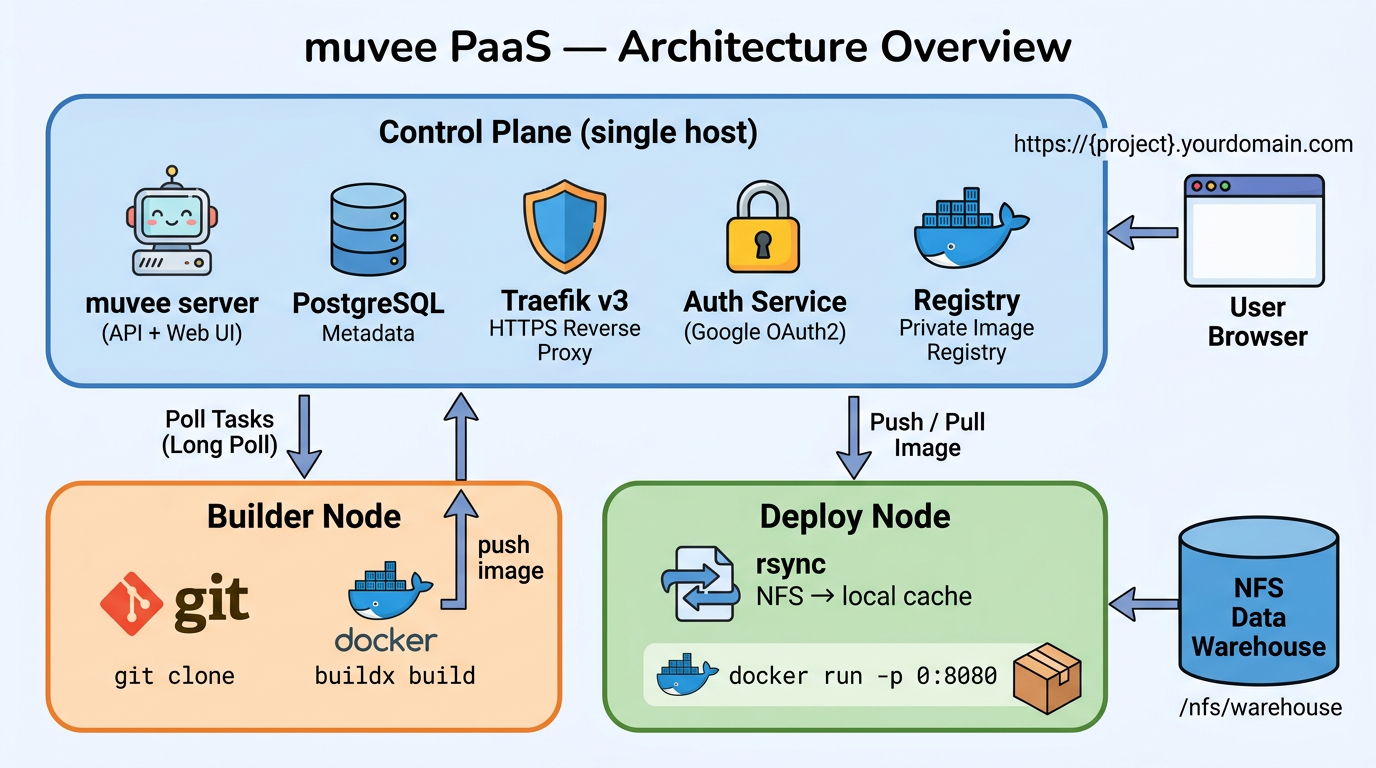

Overview

┌─────────────────────────────────────────────┐
│              Control Plane                   │
│  ┌──────────┐  ┌──────────┐  ┌───────────┐  │
│  │API Server│  │Scheduler │  │  Monitor  │  │
│  │ (Go+Chi) │  │Affinity  │  │NFS Poller │  │
│  └────┬─────┘  └────┬─────┘  └───────────┘  │
│       │             │                         │
│  ┌────▼─────────────▼──┐  ┌───────────────┐  │
│  │     PostgreSQL       │  │  Distribution │  │
│  │   (metadata DB)      │  │   Registry    │  │
│  └─────────────────────┘  └───────────────┘  │
│  ┌──────────────────────────────────────────┐ │
│  │   Traefik v3  (reverse proxy + HTTPS)    │ │
│  └──────────────────────────────────────────┘ │
└─────────────────────────────────────────────┘
          │ long-poll tasks            │ push image
          ▼                            ▼
┌──────────────────┐        ┌──────────────────┐
│   Builder Nodes   │        │   Deploy Nodes    │
│  git clone        │        │  rsync NFS→local  │
│  docker buildx    │        │  LRU cache        │
│  push image       │        │  docker run       │
└──────────────────┘        └──────────────────┘
                                       │
                              ┌────────▼────────┐
                              │  NFS Data Store  │
                              │  /nfs/warehouse  │
                              └─────────────────┘

Component Breakdown

Control Plane (cmd/server)

• API Server (internal/api) — Chi router, JWT auth middleware, REST handlers for Projects, Datasets, Deployments, Nodes, Users
• Git Hosting (internal/gitrepo) — Bare git repository lifecycle, Git Smart HTTP protocol handler (git-upload-pack / git-receive-pack), repository browser (tree, blob, commits, branches)
• Scheduler (internal/scheduler) — Affinity scoring, LRU eviction trigger, task dispatch
• Monitor (internal/monitor) — Periodic NFS path scan, checksum diff, file history recording
• Auth (internal/auth) — Google OIDC, JWT signing, RBAC middleware, project-scoped API tokens

Agent (cmd/agent)

A single binary deployed on worker nodes. Role is configured via NODE_ROLE env var:

• builder — polls for build tasks, runs git clone + docker buildx build + docker push
• deploy — polls for deploy tasks, runs data sync (rsync / NFS bind-mount), docker run -p 0:{port}, reports host_port back to the control plane

ForwardAuth Service (cmd/authservice)

Standalone HTTP service that Traefik calls via ForwardAuth middleware to enforce per-project Google authentication.

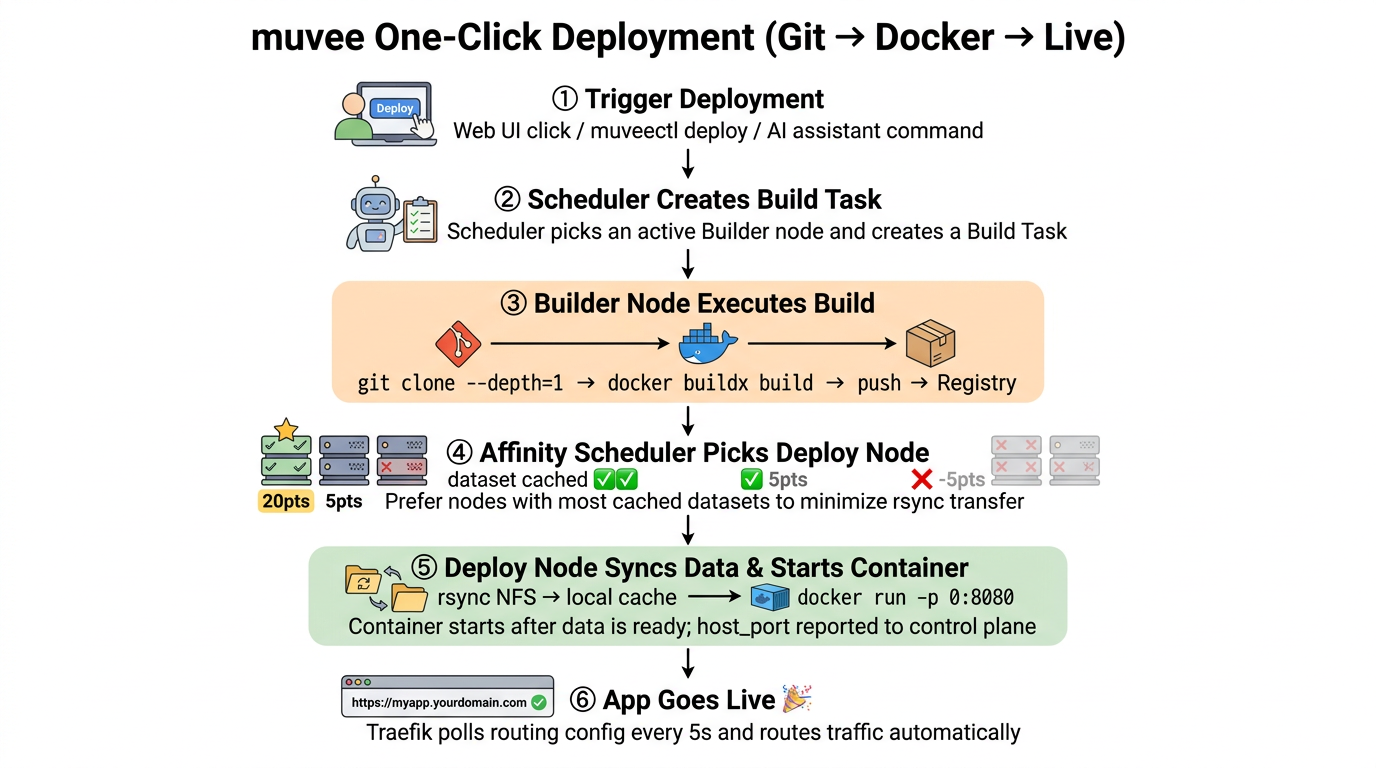

Data Flow: Deployment

User clicks "Deploy"
    │
    ▼
API creates Deployment record (status=pending)
    │
    ▼
Scheduler.DispatchBuild()
  → picks active builder node
  → creates build Task
    │
    ▼
Builder Agent polls & picks up task
  → git clone --depth=1 (external URL or hosted repo via internal HTTP)
  → docker buildx build
  → docker push registry/{project}:{sha}
  → POST /api/agent/tasks/{id}/complete
    │
    ▼
Server background loop detects completed build
  → Scheduler.DispatchDeploy()
  → scores deploy nodes by affinity
  → creates deploy Task
    │
    ▼
Deploy Agent picks up task
  → For each dependency dataset:
      rsync NFS → /muvee/data/objects/{id}/v{ver}
      symlink → /muvee/data/mounts/{deployment_id}/{name}
  → For each readwrite dataset:
      NFS bind-mount directly
  → docker run -p 0:{container_port} -v /muvee/data/mounts/...
  → docker port → discover assigned host_port
  → POST /api/agent/tasks/{id}/complete { host_port }
    │
    ▼
Control plane stores host_ip + host_port in deployments table
    │
    ▼
Traefik HTTP provider polls GET /api/traefik/config (every 5s)
  → {project}.domain.com → http://{node_ip}:{host_port}

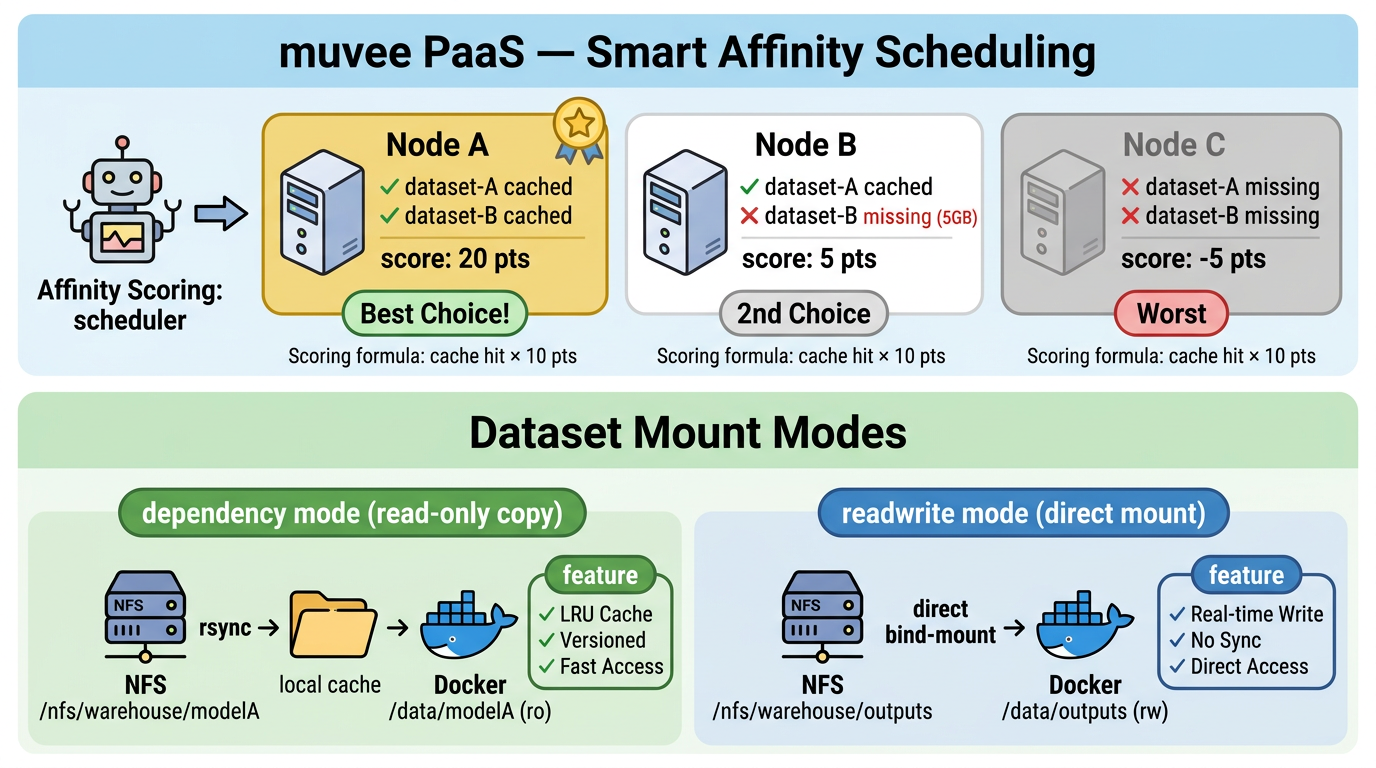

Affinity Scoring & Dataset Modes

When scheduling a deploy task, each active deploy node receives a score:

score(node) =
  + cached_dataset_count × 10       # minimize rsync cost
  - missing_bytes × 0.000001        # penalize large syncs
  + free_storage_bytes × 0.0000001  # prefer roomier nodes

If the best node lacks sufficient free space, the LRU dataset cache is evicted first (oldest last_used_at first).

Dataset Modes

Mode	Storage	LRU	NFS dependency	Container mount
dependency	Local (rsync)	Yes	Read path only	:ro bind-mount of local copy
readwrite	None	No	Direct at runtime	:rw bind-mount of NFS path
